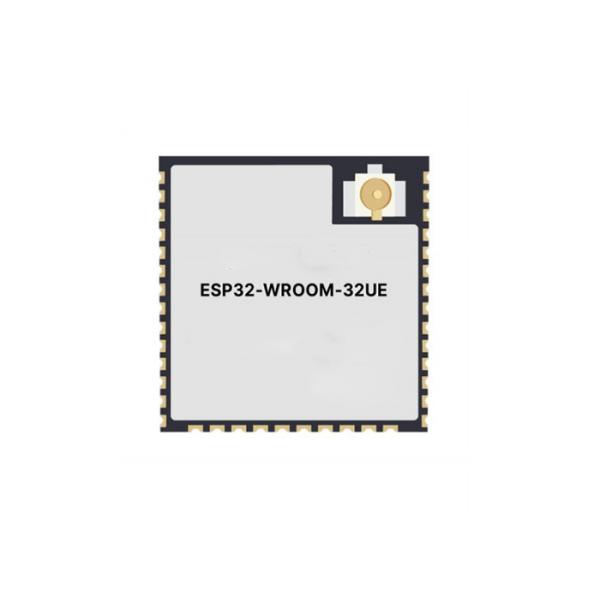

    BT SoC Module ESP32-WROOM-32UE MCU 2.4GHz

    Ask Lasest Price
    Brand Name : Original Factory
    Model Number : ESP32-WROOM-32UE
    Certification : Lead free / RoHS Compliant
    Price : Contact for Sample
    Payment Terms : T/T,, L/C, Western Union
    Delivery Time : 5-8 work days
    • Product Details
    • Company Profile

    BT SoC Module ESP32-WROOM-32UE MCU 2.4GHz

    ESP32-WROOM-32UE generic 32bit MCU 2.4GHz Wireless WiFi and BT SoC module


    Description
    ESP32-WROOM-32UE is a powerful, generic Wi-Fi + BT MCU modules that target a wide variety of applications, ranging from low-power sensor networks to the most demanding tasks, such as voice encoding, music streaming and MP3 decoding.
    ESP32-WROOM-32UE with a connector for an external antenna.


    Features
    CPU and On­Chip Memory:
    ESP32-D0WD-V3 or ESP32-D0WDR2-V3 embedded, Xtensa dual-core 32-bit LX6 microprocessor, up to 240 MHz
    448 KB ROM
    520 KB SRAM
    16 KB SRAM in RTC
    ESP32-D0WDR2-V3 also provides 2 MB PSRAM
    Wi­Fi:
    802.11b/g/n
    Bit rate: 802.11n up to 150 Mbps
    A-MPDU and A-MSDU aggregation
    0.4 µs guard interval support
    Center frequency range of operating channel:2412 ~ 2484 MHz
    BT:
    BT V4.2 BR/EDR and BT LE specification
    Class-1, class-2 and class-3 transmitter
    AFH
    CVSD and SBC
    Peripherals:
    SD card, UART, SPI, SDIO, I2C, LED PWM,Motor PWM, I2S, IR, pulse counter, GPIO,capacitive touch sensor, ADC, DAC, TWAI
    Integrated Components on Module:
    40 MHz crystal oscillator
    4/8/16 MB SPI flash
    Antenna Options:
    ESP32-WROOM-32E: On-board PCB antenna
    ESP32-WROOM-32UE: external antenna via a connector
    Operating Conditions:
    Operating voltage/Power supply: 3.0 ~ 3.6 V
    Operating ambient temperature:105 °C version: –40 ~ 105 °C. Note that only the modules embedded with a 4/8 MB flash support this version.


    Physical Dimensions


    Block Diagram


    Schematics


    FAQ

    Q. Are your products original?
    A: Yes, all products are original, new original import is our purpose.
    Q:Which Certificates do you have?
    A:We are ISO 9001:2015 Certified Company and member of ERAI.
    Q:Can you support small quantity order or sample?Is the sample free?
    A:Yes,we support sample order and small order.Sample cost is different according to your order or project.
    Q:How to ship my order? Is it safe?
    A:We use express to ship,such as DHL,Fedex,UPS,TNT,EMS.We can also use your suggested forwarder.Products will be in good packing and ensure the safety and we are responsible to product damage to your order.
    Q:What about the lead time?
    A:We can ship stock parts within 5 working days.If without stock,we will confirm lead time for you based on your order quantity.
