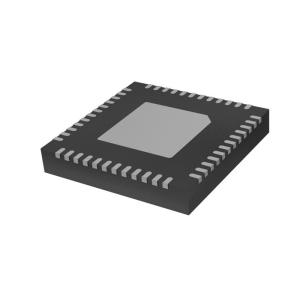

    Buy cheap STSPIN32F0ATR Advanced BLDC Controller With Embedded MCU Microcontrollers from wholesalers

    Buy cheap STSPIN32F0ATR Advanced BLDC Controller With Embedded MCU Microcontrollers from wholesalers
    • Buy cheap STSPIN32F0ATR Advanced BLDC Controller With Embedded MCU Microcontrollers from wholesalers
    • Buy cheap STSPIN32F0ATR Advanced BLDC Controller With Embedded MCU Microcontrollers from wholesalers

    STSPIN32F0ATR Advanced BLDC Controller With Embedded MCU Microcontrollers

    Ask Lasest Price
    Brand Name : Original Factory
    Model Number : STSPIN32F0ATR
    Certification : Lead free / RoHS Compliant
    Price : Contact for Sample
    Payment Terms : L/C, T/T, Western Union
    Delivery Time : 5-8 work days
    • Product Details
    • Company Profile

    STSPIN32F0ATR Advanced BLDC Controller With Embedded MCU Microcontrollers

    STSPIN32F0ATR Advanced BLDC Controller With Embedded MCU Microcontrollers


    Product Description Of STSPIN32F0ATR

    STSPIN32F0ATR is a System-In-Package providing an integrated solution suitable for driving three-phase BLDC motors using different driving modes.


    Specification Of STSPIN32F0ATR

    Part Number

    STSPIN32F0ATR

    Number of I/O

    16

    Voltage - Supply

    6.7V ~ 45V

    Operating Temperature

    -40°C ~ 125°C (TJ)

    Mounting Type

    Surface Mount

    Package / Case

    48-VFQFN Exposed Pad


    Feature Of STSPIN32F0ATR

    • Extended operating voltage from 6.7 to 45 V

    • Three-phase gate drivers

    • 600 mA sink/source

    • Integrated bootstrap diodes

    • Cross-conduction prevention

    • 32-bit ARM® Cortex®-M0 core

    • Up to 48 MHz clock frequency

    • 4-kByte SRAM with HW parity

    • 32-kByte Flash memory with optionbytes used for write/readout protection

    • Availability FW bootloader

    • 3.3. V DC/DC buck converter regulator withovercurrent, short-circuit, and thermalprotection

    • 12 V LDO linear regulator with thermalprotection

    • 16 general-purpose I/O ports (GPIO)

    • 5 general-purpose timers

    • 12-bit ADC converter (up to 9 channels)

    • I2C, USART and SPI interfaces

    • 3 rail-to-rail operation amplifiers for signalconditioning

    • Comparator for overcurrent protection withprogrammable threshold

    • Standby mode for low power consumption

    • UVLO protection on each power supply

    • VM, VDD, VREG and VBOOTx

    • On-chip debug support via SWD

    • Extended temperature range: -40 to +125 °C


    Applications Of STSPIN32F0ATR

    • Smart manufacturing equipment

    • Power tools, FANs and pumps

    • Home appliances: vacuum cleaners,hand/hair dryers, air purifiers and coffeemachines

    • High-tech applications such as: drones,gimbals, educational/home robots
