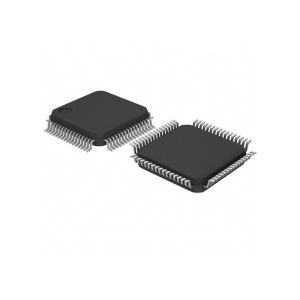

    Buy cheap CY9AF114LPMC-GE1 32 Bit Single-Core 40MHz ARM Cortex-M3 FM3 Microcontroller from wholesalers

    Buy cheap CY9AF114LPMC-GE1 32 Bit Single-Core 40MHz ARM Cortex-M3 FM3 Microcontroller from wholesalers
    • Buy cheap CY9AF114LPMC-GE1 32 Bit Single-Core 40MHz ARM Cortex-M3 FM3 Microcontroller from wholesalers
    • Buy cheap CY9AF114LPMC-GE1 32 Bit Single-Core 40MHz ARM Cortex-M3 FM3 Microcontroller from wholesalers

    CY9AF114LPMC-GE1 32 Bit Single-Core 40MHz ARM Cortex-M3 FM3 Microcontroller

    Ask Lasest Price
    Brand Name : Original Factory
    Model Number : CY9AF114LPMC-GE1
    Certification : Lead free / RoHS Compliant
    Price : Contact for Sample
    Payment Terms : L/C, T/T, Western Union
    Delivery Time : 5-8 work days
    • Product Details
    • Company Profile

    CY9AF114LPMC-GE1 32 Bit Single-Core 40MHz ARM Cortex-M3 FM3 Microcontroller

    CY9AF114LPMC-GE1 32-Bit Single-Core 40MHz ARM Cortex-M3 FM3 Microcontroller


    Product Description Of CY9AF114LPMC-GE1

    CY9AF114LPMC-GE1 is highly integrated 32-bit microcontrollers that target for high-performance and cost-sensitive embedded control applications.
    CY9AF114LPMC-GE1 is based on the Arm® Cortex®-M3 Processor and on-chip Flash memory and SRAM, and peripheral functions,including Motor Control Timers, ADCs, Communication Interfaces (UART, CSIO, I2C, LIN).


    Specification Of CY9AF114LPMC-GE1

    Peripherals

    DMA, LVD, POR, PWM, WDT

    Number of I/O

    51

    Program Memory Size

    256KB (256K x 8)

    Program Memory Type

    FLASH

    RAM Size

    32K x 8

    Voltage - Supply (Vcc/Vdd)

    2.7V ~ 5.5V

    Data Converters

    A/D 9x12b SAR

    Oscillator Type

    External, Internal

    Operating Temperature

    -40°C ~ 105°C (TA)

    Mounting Type

    Surface Mount


    Feature Of CY9AF114LPMC-GE1

    • Supports SRAM, NOR Flash device

    • Up to 8 chip selects

    • 8-/16-bit Data width

    • Up to 25-bit Address bit

    • Maximum area size: Up to 256 Mbytes

    • Supports Address/Data multiplex

    • 8 independently configured and operated channels

    • Transfer address area: 32bit (4 Gbytes)

    • Transfer mode: Block transfer/Burst transfer/Demand transfer

    • Transfer data type: byte/half-word/word

    • Transfer block count: 1 to 16

    • Number of transfers: 1 to 65536

    • Successive Approximation type

    • Built-in 3units

    • Conversion time: 1.0 μs@5 V

    • Priority conversion available (priority at 2levels)

    • Scanning conversion mode

    • 16-bit free-run timer × 3 ch/unit

    • Input capture × 4 ch/unit

    • Output compare × 6 ch/unit

    • A/D activation compare × 3 ch/unit

    • Waveform generator × 3 ch/unit

    • 16-bit PPG timer × 3 ch/unit

    • PWM signal output function

    • DC chopper waveform output function

    • Dead timer function

    • Input capture function

    • A/D converter activate function

    • DTIF (Motor emergency stop) interrupt function

    • Reset requests from INITX pin

    • Power-on reset

    • Software reset

    • Watchdog timers reset

    • Low-voltage detector reset

    • Clock Supervisor reset
