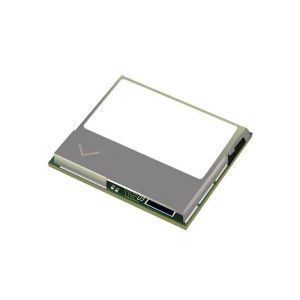

    54Mbps IC Chip CC3235MODSM2MOBR 32 Bit Dual Band Wireless MCU Modules 63-SMD

    Ask Lasest Price
    Brand Name : Original Factory
    Model Number : CC3235MODSM2MOBR
    Certification : Lead free / RoHS Compliant
    Price : Contact for Sample
    Delivery Time : 5-8 work days
    • Product Details
    • Company Profile

    54Mbps IC Chip CC3235MODSM2MOBR 32 Bit Dual Band Wireless MCU Modules 63-SMD

    54Mbps IC Chip CC3235MODSM2MOBR 32 Bit Dual Band Wireless MCU Modules 63-SMD​


    Product Description Of CC3235MODSM2MOBR

    CC3235MODSM2MOBR integrate the 40-MHz crystal, 32.768-kHz RTC clock, 32Mb SPI serial flash, RF filters, diplexer, and passive components.
    CC3235MODSM2MOBR includes 256KB of RAM, IoT networking security, device identity and keys, and MCU-level security features such as file system encryption, user IP (MCU image) encryption, secure boot, and debug security.
    CC3235MODSM2MOBR is part of the SimpleLink MCU platform—a common, easy-to-use development environment based on a single-core software development kit (SDK) with a rich tool set and reference designs.


    Specification Of CC3235MODSM2MOBR

    Part NumberCC3235MODSM2MOBR
    RF Family/Standard
    WiFi
    Protocol
    802.11a/b/g/n
    Modulation
    CCK, DSSS, OFDM
    Frequency
    2.412GHz ~ 2.472GHz, 5.18GHz ~ 5.825GHz
    Data Rate
    54Mbps
    Power - Output
    16.3dBm
    Sensitivity
    -94.5dBm
    Serial Interfaces
    I²C, I²S, SPI, UART
    Antenna Type
    Integrated, Chip
    Utilized IC / Part
    CC3235S
    Memory Size
    256kB RAM
    Voltage - Supply
    2.3V ~ 3.6V
    Current - Receiving
    53mA ~ 67mA
    Current - Transmitting
    154mA ~ 318mA
    Mounting Type
    Surface Mount
    Operating Temperature
    -40°C ~ 85°C (TA)
    Package / Case
    63-SMD Module

    Features Of CC3235MODSM2MOBR

    • Multilayered security features help developers protect identities, data, and software IP
    • Low-power modes for battery-powered applications
    • Coexistence with 2.4-GHz radios
    • Industrial temperature: –40°C to +85°C
    • 1.27-mm pitch QFM package for easy assembly and low-cost PCB design
    • Advanced low-power modes
    • Shutdown: 1 µA, Hibernate: 5.5 µA
    • Low-power deep sleep (LPDS): 120 µA
    • Idle connected (MCU in LPDS): 710 µA
    • RX traffic (MCU active): 59 mA
    • TX traffic (MCU active): 223 mA


    Applications Of CC3235MODSM2MOBR

    • Medical and Healthcare
    • Multiparameter Patient Monitor
    • Electrocardiogram (ECG)
    • Electronic Hospital Bed & Bed Control
    • HVAC Systems & Thermostat
    • Video Surveillance, Video Doorbells, and Low-Power Camera

    Functional Block Diagram Of CC3235MODSM2MOBR


    Pin Diagram Of CC3235MODSM2MOBR
