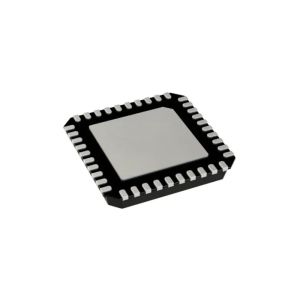

Integrated Circuit Chip ADUC7022BCPZ62 62KB 12-Bit ARM Microcontrollers - MCU

ShenZhen Mingjiada Electronics Co.,Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap Integrated Circuit Chip ADUC7022BCPZ62 62KB 12-Bit ARM Microcontrollers - MCU from wholesalers

    Buy cheap Integrated Circuit Chip ADUC7022BCPZ62 62KB 12-Bit ARM Microcontrollers - MCU from wholesalers
    • Buy cheap Integrated Circuit Chip ADUC7022BCPZ62 62KB 12-Bit ARM Microcontrollers - MCU from wholesalers
    • Buy cheap Integrated Circuit Chip ADUC7022BCPZ62 62KB 12-Bit ARM Microcontrollers - MCU from wholesalers

    Integrated Circuit Chip ADUC7022BCPZ62 62KB 12-Bit ARM Microcontrollers - MCU

    Ask Lasest Price
    Brand Name : Original Factory
    Model Number : ADUC7022BCPZ62
    Certification : Lead free / RoHS Compliant
    Price : Contact for Sample
    Payment Terms : T/T, L/C, Western Union
    Delivery Time : 5-8 work days
    • Product Details
    • Company Profile

    Integrated Circuit Chip ADUC7022BCPZ62 62KB 12-Bit ARM Microcontrollers - MCU

    Integrated Circuit Chip ADUC7022BCPZ62 62KB 12-Bit ARM Microcontrollers - MCU


    Product Description Of ADUC7022BCPZ62

    ADUC7022BCPZ62 are fully integrated, 1 MSPS, 12-bit data acquisition systems incorporating high performance multichannel ADCs, 16-bit/32-bit MCUs, and Flash®/EE memory on a single chip.
    ADUC7022BCPZ62 ADC consists of up to 12 single-ended inputs. An additional four inputs are available but are multiplexed with the four DAC output pins. The four DAC outputs are available only on certain models. However, in many cases where the DAC outputs are not present, these pins can still be used as additional ADC inputs, giving a maximum of 16 ADC input channels. The ADC can operate in single-ended or differential input mode. The ADC input voltage is 0 V to VREF. A low drift band gap reference, temperature sensor, and voltage comparator complete the ADC peripheral set.


    Specification Of ADUC7022BCPZ62

    Core Processor
    ARM7®
    Core Size
    16/32-Bit
    Speed
    44MHz
    Connectivity
    EBI/EMI, I²C, SPI, UART/USART
    Peripherals
    PLA, PWM, PSM, Temp Sensor, WDT
    Number of I/O
    13
    Program Memory Type
    FLASH
    RAM Size
    2K x 32
    Data Converters
    A/D 10x12b
    Operating Temperature
    -40°C ~ 125°C (TA)

    Features Of ADUC7022BCPZ62

    • Analog I/O
    • Multichannel, 12-bit, 1 MSPS ADC Up to 16 ADC channels
    • Fully differential and single-ended modes
    • 0 V to VREF analog input range12-bit voltage output DACs Up to 4 DAC outputs available
    • On-chip voltage reference
    • On-chip temperature sensor (±3°C)
    • Voltage comparator
    • Microcontroller
    • ARM7TDMI core, 16-bit/32-bit RISC architecture
    • JTAG port supports code download and debug
    • Clocking options
    • Trimmed on-chip oscillator (±3%)
    • External watch crystal
    • External clock source up to 44 MHz
    • 41.78 MHz PLL with programmable divider
    • See datasheet for additional features

    Applications Of ADUC7022BCPZ62

    • Industrial control and automation systems
    • Smart sensors, precision instrumentation
    • Base station systems, optical networking

    Functional Block Diagram Of ADUC7022BCPZ62


    Pin Configuration Of ADUC7022BCPZ62


    FAQ
    Q. Are your products original?
    A: Yes, all products are original, new original import is our purpose.
    Q:Which Certificates do you have?
    A:We are ISO 9001:2015 Certified Company and member of ERAI.
    Q:Can you support small quantity order or sample?Is the sample free?
    A:Yes,we support sample order and small order.Sample cost is different according to your order or project.
    Q:How to ship my order? Is it safe?
    A:We use express to ship,such as DHL,Fedex,UPS,TNT,EMS.We can also use your suggested forwarder.Products will be in good packing and ensure the safety and we are responsible to product damage to your order.
    Q:What about the lead time?
    A:We can ship stock parts within 5 working days.If without stock,we will confirm lead time for you based on your order quantity.
