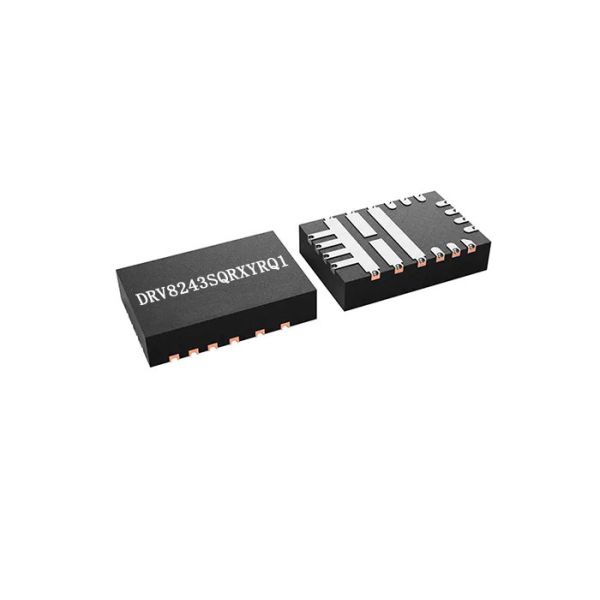

    DRV8243SQRXYRQ1 Automotive H-Bridge Driver with Integrated Current Sense and Diagnostics

    DRV8243SQRXYRQ1 Automotive H-Bridge Driver with Integrated Current Sense and Diagnostics


    Product Description Of DRV8243SQRXYRQ1

    DRV8243SQRXYRQ1 devices is a fully integrated H-bridge driver intended for a wide range of automotive applications. The device can be configured as a single full-bridge driver or as two independent half-bridge drivers.


    Specification Of DRV8243SQRXYRQ1

    Part Number

    DRV8243SQRXYRQ1

    Product Status

    Active

    Motor Type - Stepper

    Bipolar

    Motor Type - AC, DC

    Brushed DC

    Function

    Driver - Fully Integrated, Control and Power Stage

    Output Configuration

    Half Bridge (2)

    Interface

    PWM, SPI

    Technology

    Bi-CMOS

    Applications

    Automotive


    Features Of DRV8243SQRXYRQ1

    • 4.5-V to 35-V (40-V abs. max) operating range
    • PWM frequency operation up to 25 KHz with automatic dead time assertion
    • Configurable slew rate and spread spectrum clocking for low electromagnetic interference (EMI)
    • Integrated current sense (eliminates shunt resistor)
    • Proportional load current output on IPROPI pin
    • Configurable current regulation
    • Protection and diagnostic features with configurable fault reaction
    • Supports 3.3-V, 5-V logic inputs
    • Low sleep current - 1μA typical at 25°C

    Applications Of DRV8243SQRXYRQ1

    • Automotive brushed DC motors, Solenoids

    • Door modules , mirror modules, and seat modules

    • Body control module (BCM)

    • E-Shifter

    • Gas engine systems

    • On board charger


    Simplified Schematic Of DRV8243SQRXYRQ1
