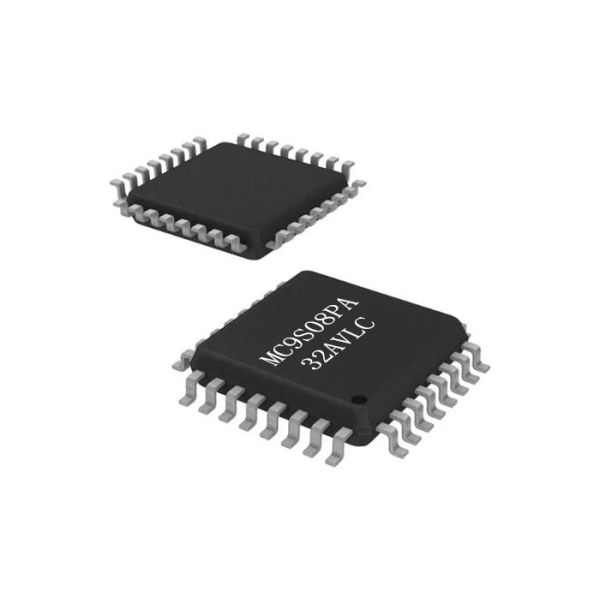

    Buy cheap Integrated Circuit Chip MC9S08PA32AVLC 8Bit 20MHz Microcontroller IC LQFP32 FLASH from wholesalers

    Buy cheap Integrated Circuit Chip MC9S08PA32AVLC 8Bit 20MHz Microcontroller IC LQFP32 FLASH from wholesalers
    • Buy cheap Integrated Circuit Chip MC9S08PA32AVLC 8Bit 20MHz Microcontroller IC LQFP32 FLASH from wholesalers

    Integrated Circuit Chip MC9S08PA32AVLC 8Bit 20MHz Microcontroller IC LQFP32 FLASH

    Ask Lasest Price
    Brand Name : Original Factory
    Model Number : MC9S08PA32AVLC
    Certification : Lead free / RoHS Compliant
    Price : Contact for Sample
    Payment Terms : T/T, L/C, Western Union
    Delivery Time : 5-8 work days
    • Product Details
    • Company Profile

    Integrated Circuit Chip MC9S08PA32AVLC 8Bit 20MHz Microcontroller IC LQFP32 FLASH

    Integrated Circuit Chip MC9S08PA32AVLC 8Bit 20MHz Microcontroller IC LQFP32 FLASH​


    Product Description Of MC9S08PA32AVLC

    MC9S08PA32AVLC is 8-Bit S08 central processor unit (CPU), Up to 20 MHz bus at 2.7 V to 5.5 V across temperature range of -40 °C to 105 °C. Package is 32-LQFP (7x7).


    Specification Of MC9S08PA32AVLC

    Part NumberMC9S08PA32AVLC
    Core Processor
    S08
    Core Size
    8-Bit
    Speed
    20MHz
    Connectivity
    I²C, LINbus, SPI, UART/USART
    Peripherals
    LVD, POR, PWM, WDT
    Number of I/O
    28
    Program Memory Size
    32KB (32K x 8)
    Program Memory Type
    FLASH
    EEPROM Size
    256 x 8
    RAM Size
    4K x 8
    Voltage - Supply (Vcc/Vdd)
    2.7V ~ 5.5V
    Oscillator Type
    Internal
    Operating Temperature
    -40°C ~ 105°C (TA)
    Mounting Type
    Surface Mount
    Package / Case
    32-LQFP
    Supplier Device Package
    32-LQFP (7x7)

    Features Of MC9S08PA32AVLC

    • 8-Bit S08 central processor unit (CPU)
    • Up to 20 MHz bus at 2.7 V to 5.5 V across
    • temperature range of -40 °C to 105 °C
    • Supporting up to 40 interrupt/reset sources
    • Supporting up to four-level nested interrupt
    • On-chip memory
    • Up to 60 KB flash read/program/erase over full operating voltage and temperature
    • Up to 256 byte EEPROM; 2-byte erase sector; program and erase while executing flash
    • Up to 4096 byte random-access memory (RAM)
    • Flash and RAM access protection

    Typical Crystal Or Resonator Circuit Of MC9S08PA32AVLC


    FAQ
    Q. Are your products original?
    A: Yes, all products are original, new original import is our purpose.
    Q:Which Certificates do you have?
    A:We are ISO 9001:2015 Certified Company and member of ERAI.
    Q:Can you support small quantity order or sample?Is the sample free?
    A:Yes,we support sample order and small order.Sample cost is different according to your order or project.
    Q:How to ship my order? Is it safe?
    A:We use express to ship,such as DHL,Fedex,UPS,TNT,EMS.We can also use your suggested forwarder.Products will be in good packing and ensure the safety and we are responsible to product damage to your order.
    Q:What about the lead time?
    A:We can ship stock parts within 5 working days.If without stock,we will confirm lead time for you based on your order quantity.
